Material Heating element: Sillicon Nitride (Si3N4)
Rating power:300~400W.
Max.temperature:1400℃.
Time to ignition:30~60 seconds.
Service life:over than 100,000 ON/OFF cycles.
Cable length: 300 mm black fiberglass insulated 0.75 mm² cable
Features:Long Working Life More than 10 years, more than 100,000 times

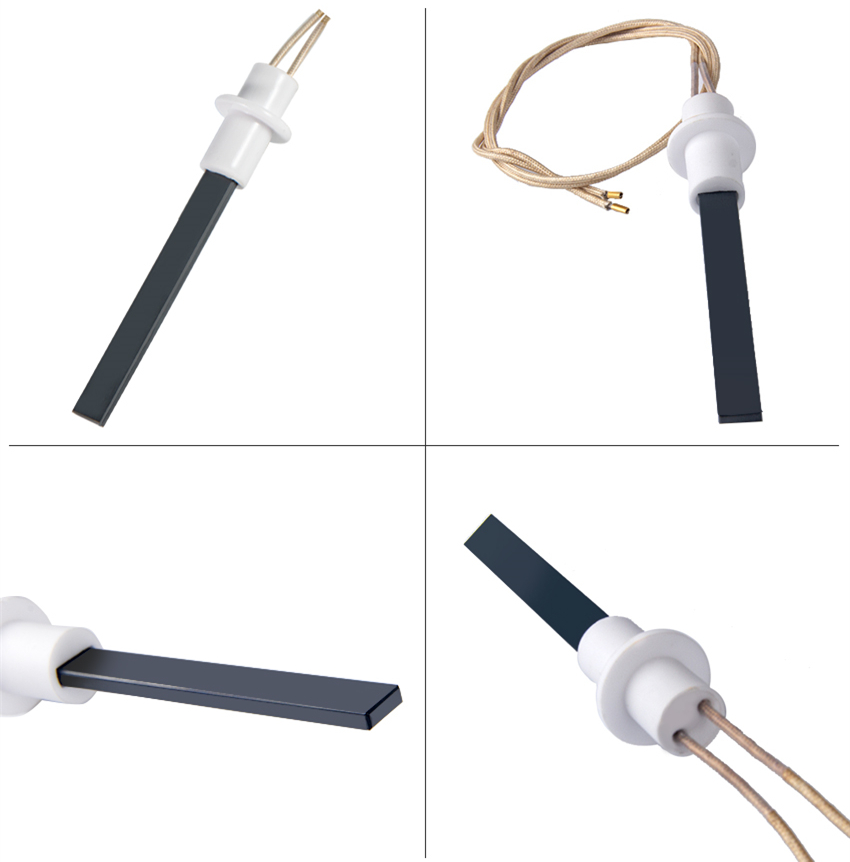

Silicon nitride igniters are electrical components used to ignite fuel in various heating applications. They are made of a high-strength ceramic material known as silicon nitride (Si3N4). Silicon nitride igniters have several advantages over traditional metal igniters, including faster ignition times, longer service life, and higher temperature resistance.
Order NO. | Volatge | Rating power | Width | Total length | Length under flange | Length under flange | Max.OD. flange |
KT SERIES | (v) | (w) | (mm) | (mm) | L2(mm) | L3(mm) | (mm) |
KT1201001 | 230 | 300 | 10.8 | 127.6 | 110 | 60 | 26 |
KT1201002 | 230 | 350 | 10.8 | 127.6 | 110 | 60 | 26 |
KT1201003 | 230 | 400 | 10.8 | 127.6 | 110 | 60 | 26 |
KT1201004 | 120 | 400 | 10.8 | 127.6 | 110 | 60 | 26 |
KT1201005 |
24 | 400 | 10.8 | 127.6 | 110 | 60 | 26 |
More Applications : | |
Biomass boiler/burner | Gas burner/stove |
Ignition of gas or oil | Pellet Stove |
Stove fireplace | Wood pellet stove |
Particle Burning | Pellet burners |
Pellet boiler | Pellet burner |
Pellet BBQ/grill | Medical-Scientific |
Heaters-Agricultural | Spark Igniters |
Flame Rods | Igniter Troubleshooting |
Ovens-Commercial | HVAC (Heating, ventilation, and air conditioning) |
